端铣刀
HOME > 产品介绍 > 端铣刀
ZE304 series 底硬度专用 ㆍ 完胜
- 4刃，标准 铣刀
-
- 4 FLUTE, REGULAR LENGTH
- 공구강, 합금강, 금형강 및 고경도 피삭재에 적합

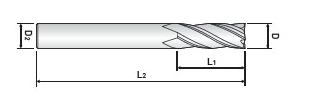

| EDP. No. | D | L1 | L2 | D2 |
|---|---|---|---|---|
| ZE304020 | 2 | 6 | 40 | 6 |
| ZE304025 | 2.5 | 8 | 40 | 6 |
| ZE304030 | 3 | 8 | 45 | 6 |
| ZE304035 | 3.5 | 10 | 45 | 6 |
| ZE304040 | 4 | 11 | 45 | 6 |
| ZE304045 | 4.5 | 11 | 45 | 6 |
| ZE304050 | 5 | 13 | 50 | 6 |
| ZE304055 | 5.5 | 13 | 50 | 6 |
| ZE304060 | 6 | 13 | 50 | 6 |
| ZE304065 | 6.5 | 16 | 60 | 8 |
| ZE304070 | 7 | 16 | 60 | 8 |
| ZE304075 | 7.5 | 16 | 60 | 8 |
| ZE304080 | 8 | 19 | 60 | 8 |
| ZE304085 | 8.5 | 19 | 70 | 10 |
| ZE304090 | 9 | 19 | 70 | 10 |
| ZE304095 | 9.5 | 19 | 70 | 10 |
| ZE304100 | 10 | 22 | 70 | 10 |
| ZE304105 | 10.5 | 22 | 75 | 12 |
| ZE304110 | 11 | 22 | 75 | 12 |
| ZE304115 | 11.5 | 22 | 75 | 12 |
| ZE304120 | 12 | 26 | 75 | 12 |
| ZE304130 | 13 | 26 | 80 | 12 |
| ZE304140 | 14 | 26 | 80 | 14 |
| ZE304150 | 15 | 32 | 90 | 16 |
| ZE304160 | 16 | 32 | 90 | 16 |
| ZE304180 | 18 | 32 | 100 | 18 |
| ZE304200 | 20 | 38 | 100 | 20 |
适用被削材料
| 碳素钢 (S45C, S55C...) ~ HB225 |
合金钢 (SCM, SK...) HB225~325 |
前热处理钢 (NAK...) HRc30~50 |
热处理钢 | 铜 | 石墨 | 铸铁 FCD400. 500~ |
铝 | 不锈钢 | |
|---|---|---|---|---|---|---|---|---|---|
| ~HRc55 SKD61 | ~HRc55 SKD11 | ||||||||
| ◎ | ◎ | ○ | |||||||
容许公差
| 刃线部 (mm) | 柄部 |
|---|---|
| 0 ~ -0.02 | h6 |
