丝锥
HOME > 产品介绍 > 丝锥
WFCM series 钨钢 ㆍ JIS & DIN
-
JIS / 螺旋挤压丝锥 / TiCN涂层
-
- -适合钢、非铁合金及不锈钢螺钉作业
- -采用涂层提高了耐久性，可进行高效率的螺丝作业

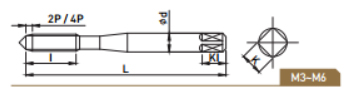

| EDP. No. | 螺丝外径 | 等级 | L | I | d | K | KI | 倒角加工。 |
|---|---|---|---|---|---|---|---|---|
| WFCM0305020 | M3 X 0.5 | GH6 | 46 | 18 | 4 | 3.2 | 6 | 2P |
| WFCM0305040 | M3 X 0.5 | GH6 | 46 | 18 | 4 | 3.2 | 6 | 4P |
| WFCM03506020 | M3.5 X 0.6 | GH6 | 46 | 18 | 4 | 3.2 | 6 | 2P |
| WFCM03506040 | M3.5 X 0.6 | GH6 | 46 | 18 | 4 | 3.2 | 6 | 4P |
| WFCM0407020 | M4 X 0.7 | GH7 | 52 | 20 | 5 | 4 | 7 | 2P |
| WFCM0407040 | M4 X 0.7 | GH7 | 52 | 20 | 5 | 4 | 7 | 4P |
| WFCM0508020 | M5 X 0.8 | GH7 | 60 | 22 | 5.5 | 4.5 | 7 | 2P |
| WFCM0508040 | M5 X 0.8 | GH7 | 60 | 22 | 5.5 | 4.5 | 7 | 4P |
| WFCM0610020 | M6 X 1.0 | GH7 | 62 | 24 | 6 | 4.5 | 7 | 2P |
| WFCM0610040 | M6 X 1.0 | GH7 | 62 | 24 | 6 | 4.5 | 7 | 4P |
